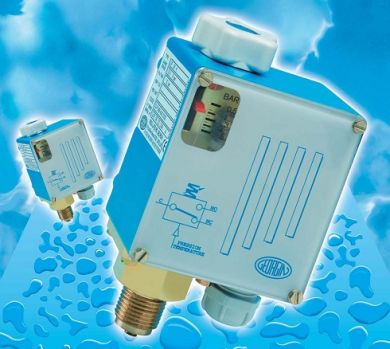

Georgin Pressure Switches - U Series

$306.75

Product Code: GeorginPressureSwitches

Manufacturer: Georgin

Datasheet: Georgin U Series

Buy online for small quantities. For large quantities, projects and repeat business send a quotation request to: sales@birkettcontrols.com.au

U-Series

Working Principle

Instruments from this series are fitted with a flexible arm mecanism which allows the device to withstand impacts or vibrations without set point drifting.

As load created by the sensing element  is directly opposed to the load from the spring , this arm undergoes no force which allows a linearity of measurement and dead band.

Set point is selected through external knob  while dead band  is adjusted from inside.

Construction

Housing:

Fiber glass and polyarylamide

Polycarbonate cover



IP 65 (according to EN60529)



Pressure Element:

NBR diaphragm and brass flange (as option FKM diaphragm for oxygen cleaning or EPDM diaphragm)



Connection 1/2 BSP male according to EN 837-1



Temperature element:



2 meters capillary with bulb Ø 9 x 120 mm in copper



General:

Electrical connection : terminal 2.5 mm2, cable gland ISO M20 for Ø 7.5 to 13 mm

Working temperature : - 20 to + 60 °C

Process temperature (for pressure) : - 20 to + 100 °C



Weight : 700 grams

Option:

Pressure switches : welded connection, cocks, siphon - capillary

Temperature switches : bulb mechanical protection brass or st.st., capillary T.G.



Set point ajustable screw (to be defined at the order) instead of knob



To order a configuration not included in the above list or for application advice, send your request to:sales@birkettcontrols.com.au

or Contact us for more information on 0418 325 563
