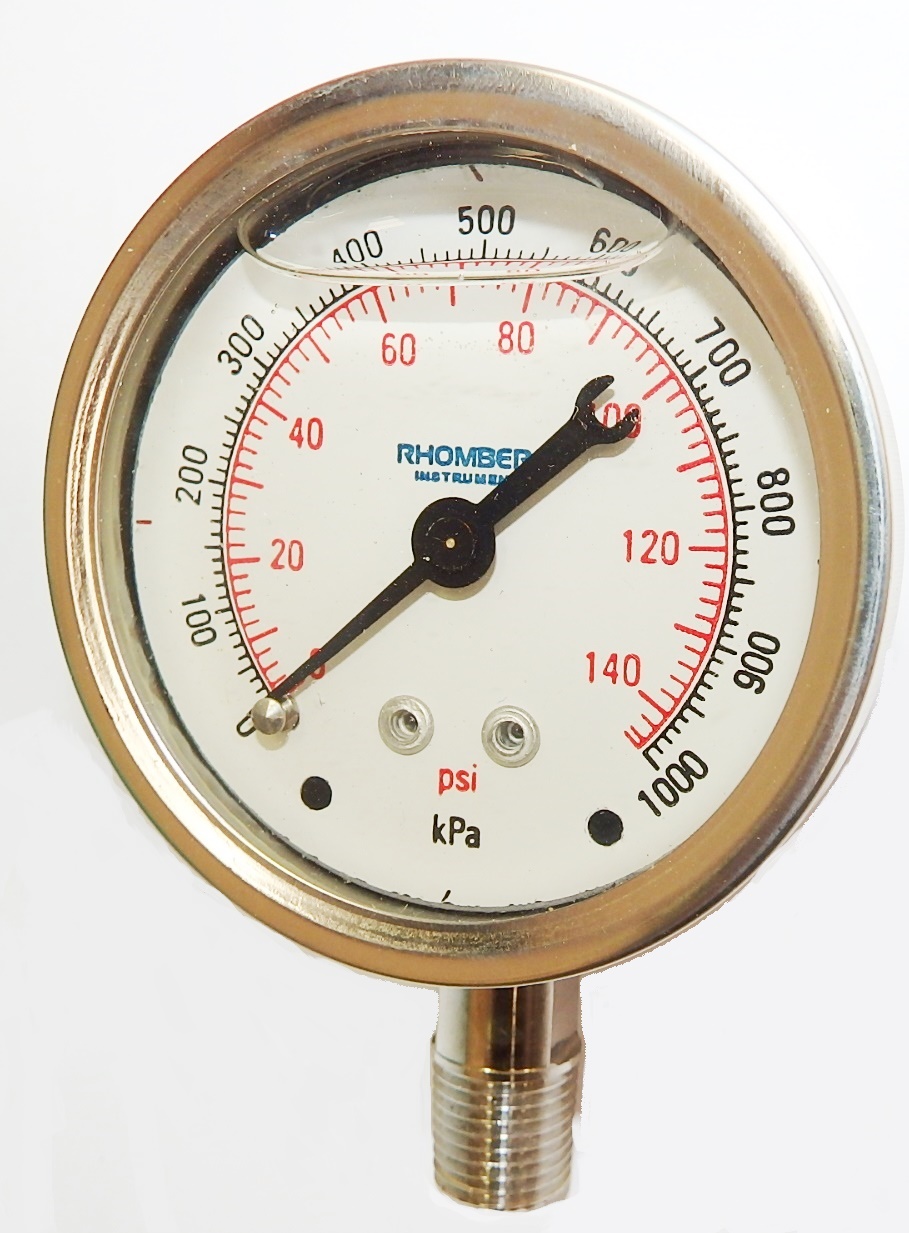

63mm, Stainless Steel, Bottom Entry, SS Case

$126.00

Product Code: PBGA63SS22xxxxxx

Manufacturer: Rhomberg Instruments

Datasheet: Rhomberg PBG Datasheet

Catalogue: Rhomberg Product Overview

Buy online for small quantities. For large quantities, projects and repeat business send a quotation request to: sales@birkettcontrols.com.au



¼” BSPT Bottom connection inSS. Liquid filled with SS case/bezel. Stocked Ranges from -100/0 kPa up to 0/2500 kPa with dual scale in kPa and PSI.



Other materials and connections and larger sizes are available by quotation request. Delivery Time for Non-Stocked configurations is typically 3-5 weeks



To order a configuration not included in the above list or for application advice, send your request to:sales@birkettcontrols.com.au

or Contact us for more information on 0418 325 563



Application Areas:

For heavy duty service where vibration or pulsation of medium would cause excessive wear on a dry gauge or where corrosive ambient conditions prevail. Specific application examples are hydraulic equipment, mining equipment and irrigation equipment.



Technical Specifications:

¼” BSPT SS316 connection, SS316 internals, SS304 case/bezel, polycarbonate window, glycerine damping fluid, accuracy 1.6% FSD, temperature range -25’C to 60’C but must not be below freezing temperature of the fluid.
